Exploring the Boundaries of Diaphragm Pump Technology

Thanks to their outstanding adaptability, diaphragm pumps hold a crucial position in industrial fluid control. By driving a flexible diaphragm in reciprocating motion, the pump alters chamber volume to achieve suction and discharge—making it suitable for handling gases, liquids, or their mixtures.

However, conventional diaphragm pumps are often limited to being either “gas-only” or “liquid-only.” When facing gas-liquid Hybrid conditions, they frequently suffer from reduced efficiency, unstable operation, or shortened service life.

The Limitations of Gas Pumps: Struggling with Liquids

Gas diaphragm pumps are typically optimized for compressing air or other gaseous media. While they can maintain stable gas flow, hybrid applications present multiple challenges:

• Pressure instability caused by the contradiction between compressible gases and incompressible liquids

• Softer diaphragm materials that fail under liquid-induced stress

• Free-floating valves prone to sticking when liquid droplets are present, affecting vacuum performance

• Frequent pulsing and cavitation leading to wear and tear

• Large flow fluctuations compromising system stability

The Shortcomings of Liquid Pumps: Insufficient Gas Handling

On the other hand, liquid diaphragm pumps excel at dense, incompressible media but show weaknesses when gases are involved:

• Reinforced diaphragms improve durability for liquids but reduce gas flow efficiency

• Valves designed for liquid pathways compromise gas throughput

• Short stroke and low frequency designs enhance liquid reliability but severely limit gas delivery

• Lower motor speeds restrict gas transport rates and responsiveness

As a result, traditional liquid pumps underperform in mixed-phase environments, failing to meet the growing demand for multifunctional and highly stable solutions.

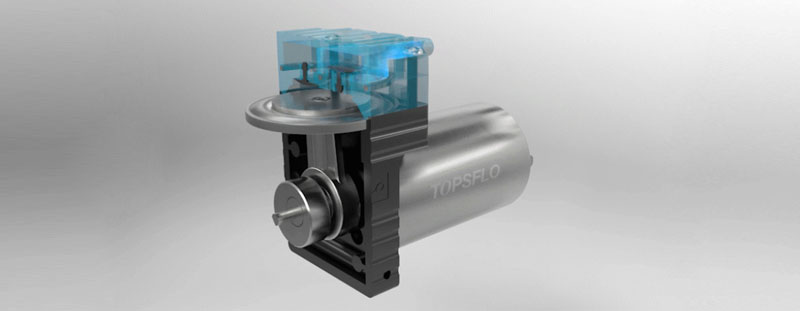

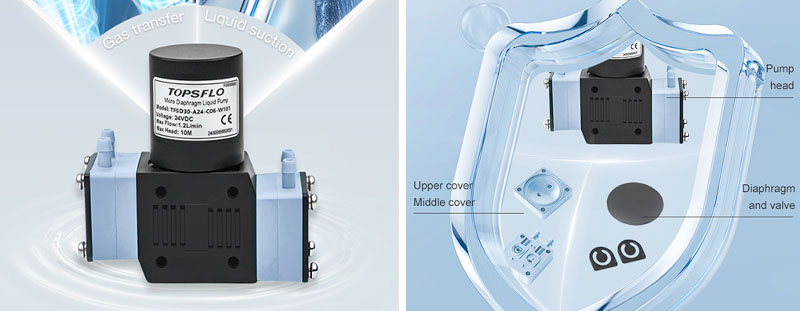

TOPSFLO Gas-Liquid Hybrid Diaphragm Pump: Breaking Boundaries, Delivering Precision

To address these industry challenges, TOPSFLO Pump Technology has launched a high-performance diaphragm pump series tailored for gas-liquid Mixing applications. Leveraging years of fluid control expertise and continuous innovation, we’ve overcome the key bottlenecks of mixed-phase transfer, creating a solution that is more efficient, reliable, and versatile.

      1. Engineering-Grade Design for Broad Media Compatibility

• Smart material mix: EPDM, AEPDM, PTFE, FKM, FFKM—balancing elasticity, strength, and chemical resistance for long-term stability

• Dual-mode control logic: Built-in PWM speed control and FG feedback, automatically adjusting parameters by media type

• Dual-bearing design: Reinforced pump rigidity for superior fatigue resistance under high pressure and hybrid loads

     2. Stable Output, Minimized Pulsation

• Optimized diaphragm stroke and frequency for smooth liquid delivery and continuous gas discharge

• Integrated defoaming and pressure stabilization to prevent cavitation damage

• Adaptive pressure regulation ensuring consistent performance across conditions

     3. Energy-Efficient and Sustainable

• Hollow-cup brushless motor for fast response, low energy use, and extended service life

• Intelligent start-stop control adapting power output to real demand

• Quiet operation (<50 dB) for low-noise environments

• Modular design simplifying maintenance and reducing cost of ownership

Broad Applications Across Industries

—IVD Equipment: Efficiently evacuates both liquid and gaseous waste without disrupting diagnostic processes

—CIJ Printing Systems: Recovers excess ink mist while venting air, ensuring clean nozzles and stable print quality

—Condensate Management: Simultaneously handles cooled gas and condensate in flue gas and gas analyzers, preventing blockages and ensuring accuracy

—Other Applications:

Medical cleaning systems

Laboratory automation platforms

Environmental monitoring

Semiconductor cleanrooms

Sanitizing & disinfectant dispensers

Simplify Success, Choose Smarter Pumps

In today’s increasingly complex fluid management landscape, single-function diaphragm pumps can no longer keep pace. The TOPSFLO Gas-Liquid Hybrid Diaphragm Pump delivers unmatched compatibility, stable transfer performance, and optimized energy efficiency—providing an advanced and practical alternative.

Whether you’re managing pure gases, pure liquids, or ever-changing multiphase flows, TOPSFLO offers customized pumping solutions to help you achieve higher efficiency, fewer failures, and longer service life.

Choose TOPSFLO—choose smarter fluid control.
