TFSD30 Dual Head Miniature Diaphragm Pump
Mainly used in
Point of Care Diagnostics
Digital Ink Jet Printing
Negative Pressure Wound Therapy
Compression Therapy
Medical Simulation
In Vitro Diagnostics
DVT Prevention
Description
Dual Head Miniature Diaphragm Pump Features:
Compact size
Highly airtight
Higher flow output
Corrosion resistance
Specifications
Technical data
| Motor | BLDC motor |
| Max Flow | 0.65L/min |
| Max Pressure | 1bar |
| Structure | Diaphragm Pump |
| Media | Ink, water, most liquids and gases |
| Material | Head Nylon, Membrane EPDM, Valve EPDM |
| Operating Voltage Range | 24V: 18~28VDC |
| Lifetime | 10000 hours |
| Working Mode | Interrupt |
| Work Temperature Rise | <70℃ |
| Customized Support | 5V,PWM, FG, Material: membrane / valve / pump head |

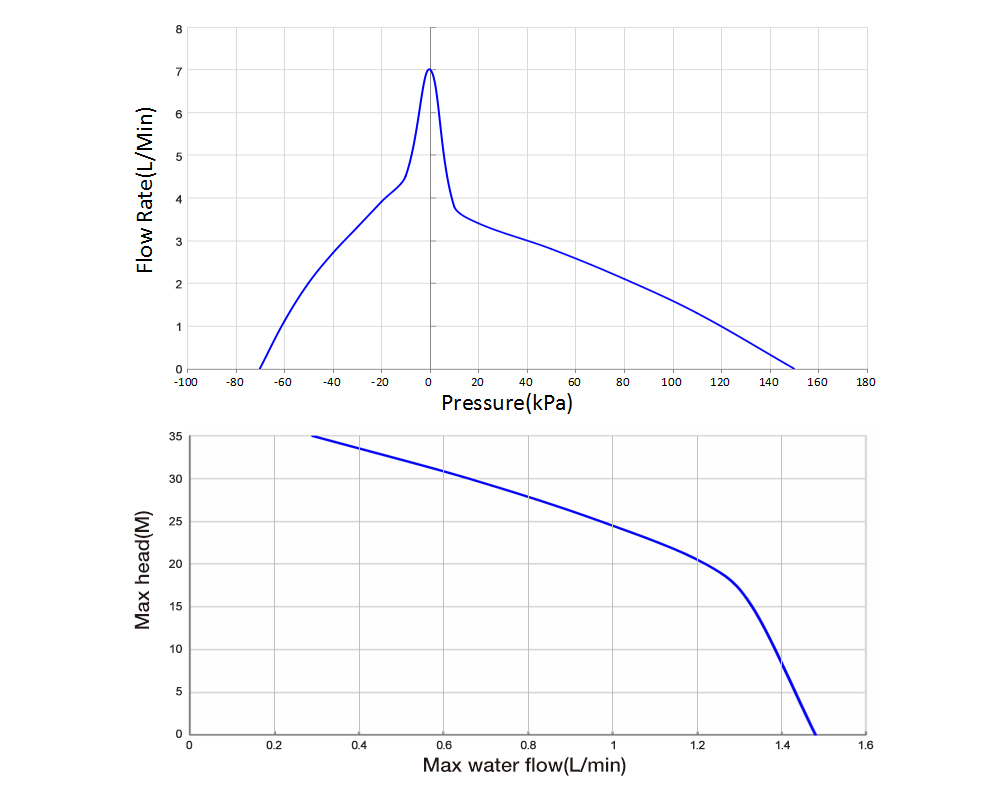

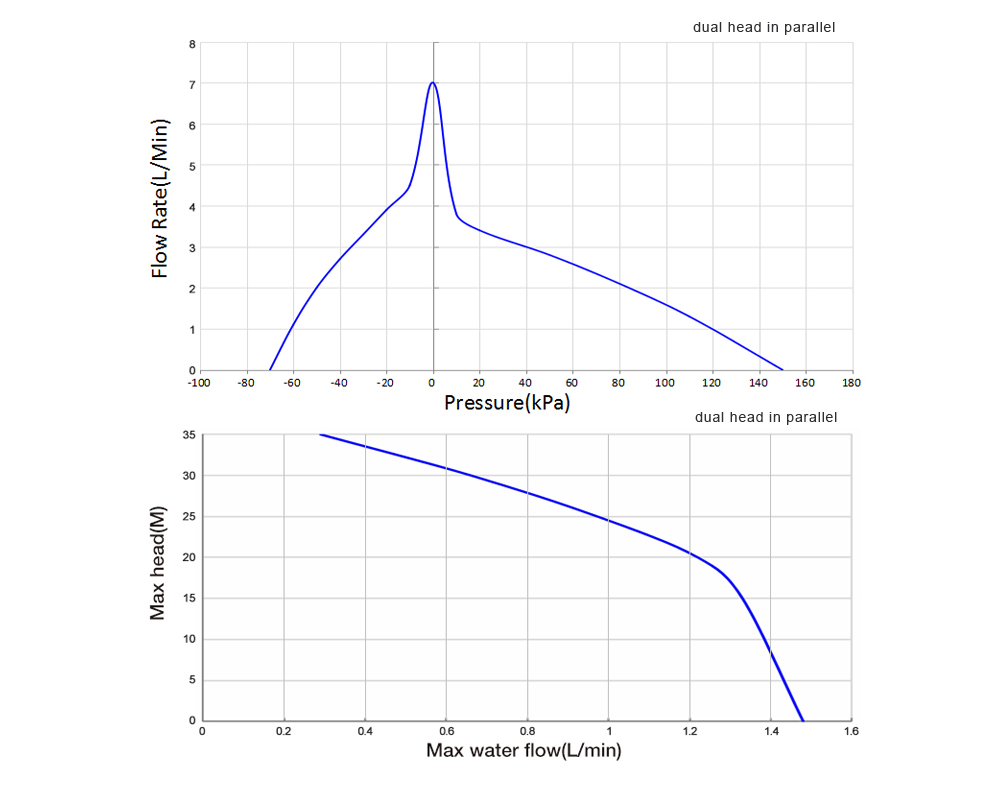

Performance Curve

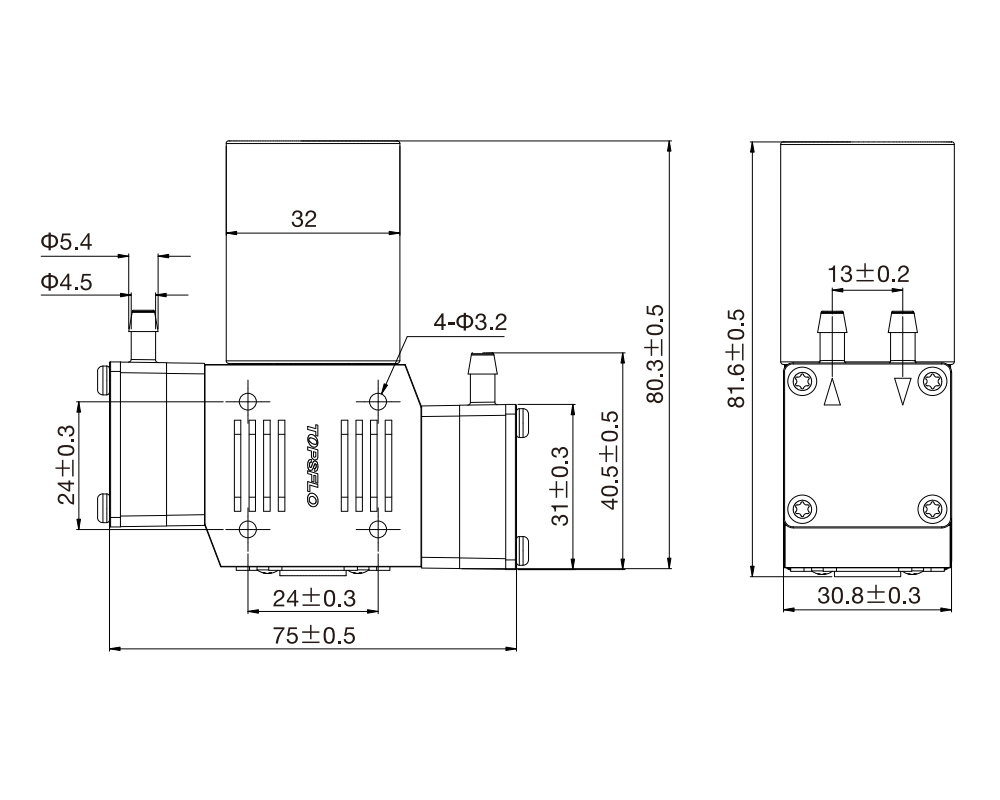

Dimension(mm)
Application
TFSD Micro Diaphragm Liquid Pump Applications: Point of Care Diagnostics, Negative Pressure Wound Therapy, Compression Therapy, Medical Simulation, Scent Dispersion, DVT Prevention, Digital Ink Jet Printing, In Vitro Diagnostics
-

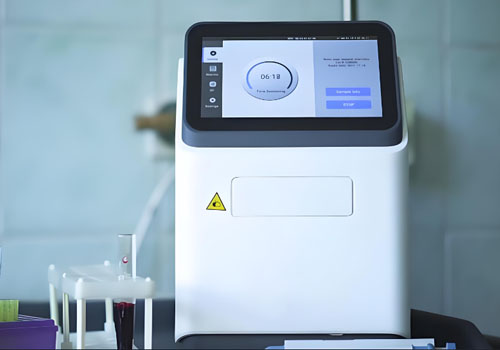

Point of Care Diagnostics
-
In Vitro Diagnostics
-
Inkjet Printer
-
Analytical Instruments
Customization
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
