TA70E High Pressure Water Cooling Pump
Mainly used in
EV Liquid-Cooling Charging | Electric Vehicle SuperCharger
Industrial & Commercial Electronics Cooling
Energy Storage | Thermal Management Cooling
Liquid Transfer | Other Cooling Circulation
Description
Features:
• Intelligent control, FG signal, Intelligent Protection Function
• Long working life >20,000 hours
• Good batch consistency, defect rate as low as 1/100000
• High flow rate & water head, Low heat generation, fast heat dissipation, good cooling effect
Specifications
| Model | Max Flow (L/Min) |
Max Head (M) |
Rated Voltage (VDC) |
Rated Current (A) |
Rated Power (W) |
| TA70E-A24-4020 | 40 | 25 | 24 | 5 | 120 |
| TA70E-A24-4030 | 42 | 30 | 24 | 6.25 | 150 |
OEM Customization Available
Technical data
| Model | TOPSFLO TA70E |
| Motor Type | Brushless DC Motor |
| Ambient Temperature | -40～55℃ |
| Liquid Temperature | -40~85℃ |
| Media | Water, Antifreeze, Coolant, Glycol, Dielectric coolants. etc |
| Working Voltage Range | 24V: 12~28V |
| Maximum System Pressure | 1.8MPa |
| Ideal Life Time | >20000 Hours |
| IP Level | IP67 |
| Coil Insulation class | Class F |
| Certification | CE, REACH, RoHS, UL(UL certification in progress; UL-compliant customization capability available) |
| OD(inlet / outlet) | 20mm / 20mm OEM Customization Available |
| Material | Head / Body / Pump chamber: PPS+ GF O-Ring: EPDM Shaft: Precision Ceramics Bearing Sleeve: Graphite Gasket: Precision Ceramics+stainless steel |
| Working Mode | Continuous |
| Power Supply | DC power supply |
| EMC | Good electromagnetic compatibility, low EMI and high immunity |
| Protection Functions | Over-Voltage Protection, Lower-Voltage Protection, Dry-running Protection, Over-Temperature Protection, Over-Current Protection, Blocked-Protection, Polarity Protection, Constant Power Output |
| Functions | TA70E Supports PWM speed control and FG (RPM) signal feedback, enabling precise flow regulation and real-time performance monitoring. |
| Remarks | Can't dry-running, not self-priming |

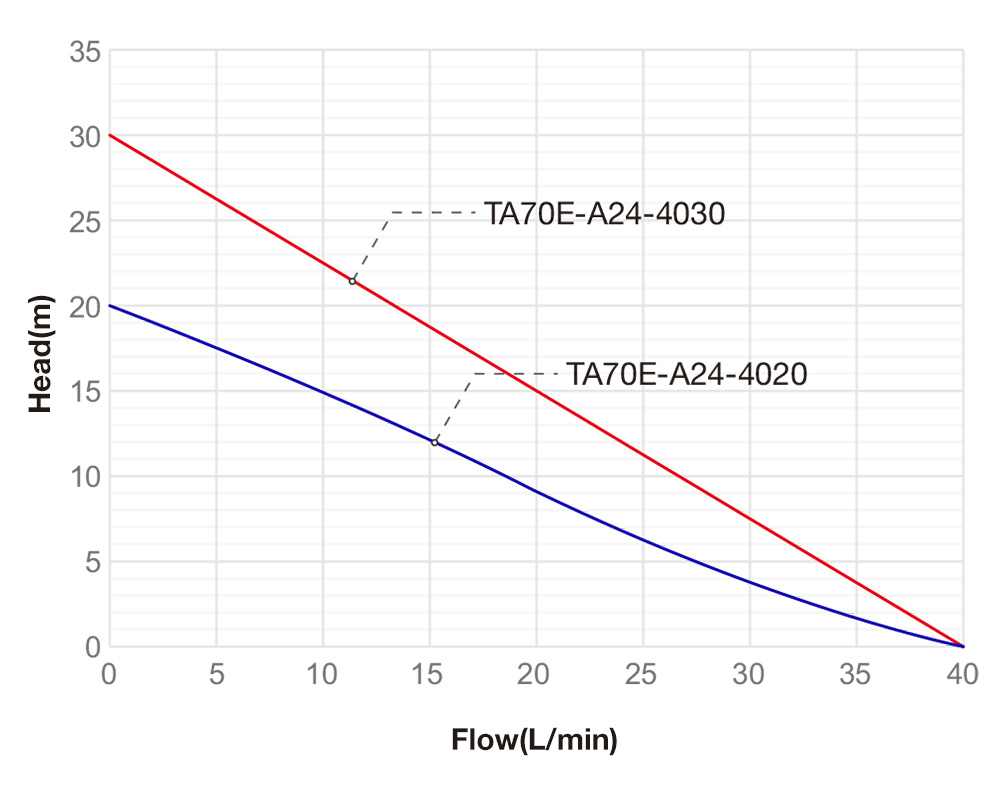

Performance Curve

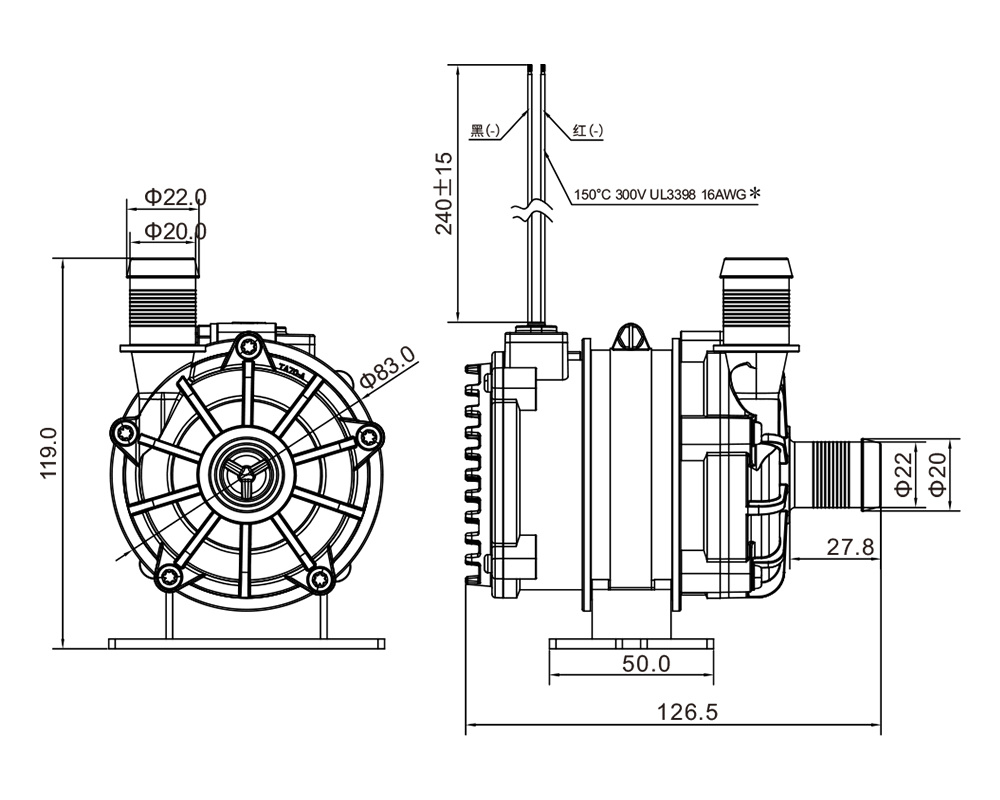

Dimension(mm)
Application
TA70E High Pressure Liquid Cooling Pump Applications: EV charger liquid-cooling system, Chiller, Energy storage cabinet cooling, Industrial & Commercial electronics cooling, Thermal management liquid cooling system, Medical cooling, Server Data Center cooling / CDU cooling
-
EV Charger
-
Server Cooling
-
Chiller
-
Medical Cooling
Customization
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
