• Precision Control | Superior Linear Output

Duty Cycle = Air Output , Highly Linear

· TP30 uses optimized drive algorithm + precision piston structure, achieving perfect PWM–airflow linear mapping.

The Result: Precision Control; every cup delivers uniform foam thickness. Ideal for all recipes: Cappuccino, Latte, Flat White, Iced Cappuccino, etc.

• Ultra Consistency | Batch-Stable Performance

Nearly identical airflow curves across every unit; extremely low batch deviation. Simplify factory calibration, reduce production costs, and lower after-sales service.

• High pressure + Stable Flow + Compact Size

· Max pressure, Stable flow

· Stronger cold foam performance

· 30% smaller volume – fits nearly all commercial coffee machines

• Food-Grade Safety | Oil-Free & Hygiene

All wetted materials strictly comply with FDA standards to ensure pure, safe, great-tasting milk foam and satisfy rigid beverage Hygienic requirements.

• Ultra-Quiet & Durable | Commercial Use

· Low noise: 45 dB @ 1.2 bar – perfect for open cafes & counters

· Continuous operation > 1,000 hours with flow degradation < 8%

Heavy-duty design reduces maintenance and eliminates abnormal noise over long-term operation.

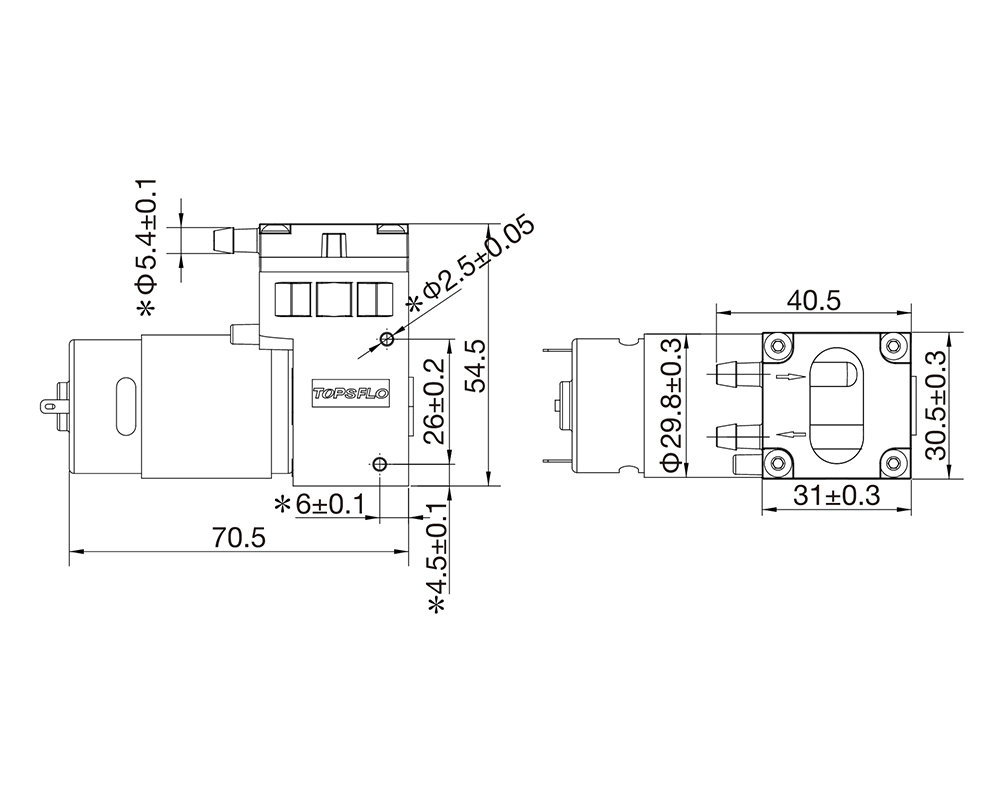

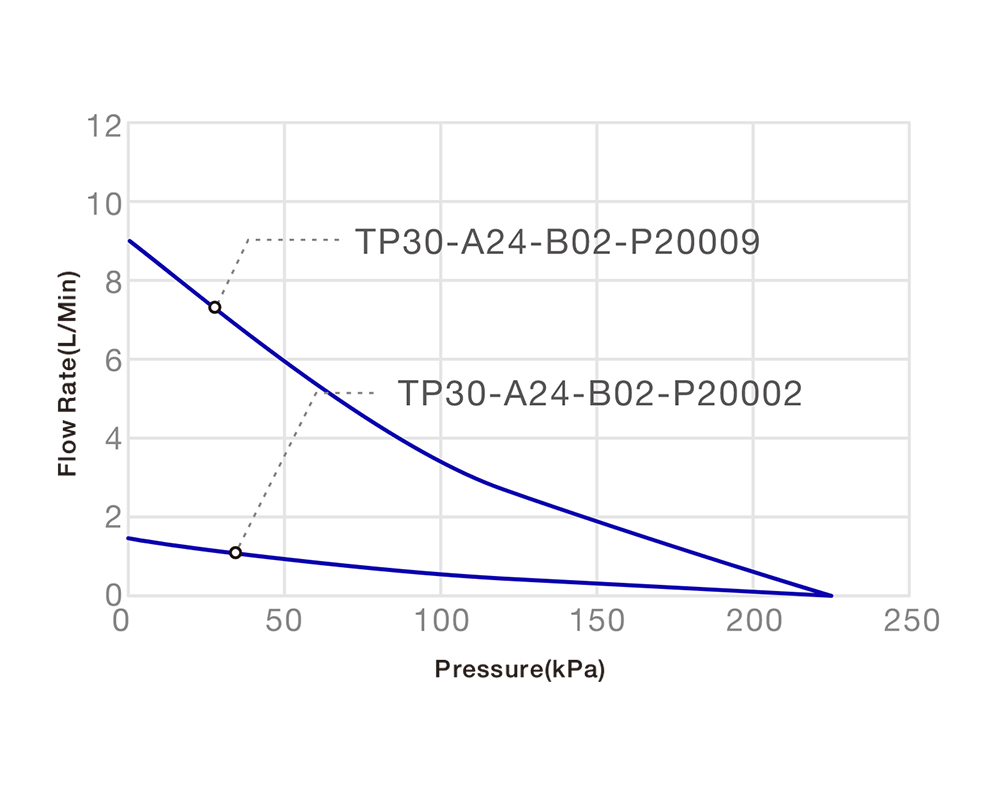

Technical data

Strength:

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
