Why Choose TOPSFLO TG01 24V Gear Milk Transfer Pumps for Commercial Coffee Machines?

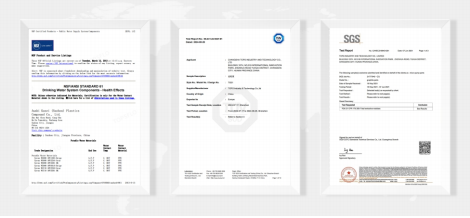

1. NSF, LFGB, FDA standards reduces the risk of milk residue

Selected NSF, LFGB, FDA certified materials, the compact internal structure minimizes dead zones and crevices, enabling fast and thorough cleaning while significantly reducing residue buildup from perishable media such as milk

2.Imported unique seal design zero leakage under high pressure

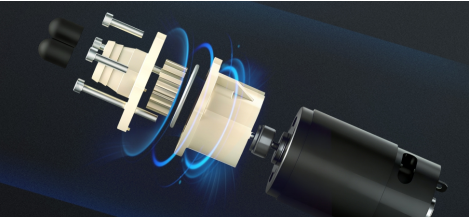

The unique imported sealing system ensures stable operation unde hign pressure with 0 leakage risk, Specially designed gears, produced with high-precision molds, feature minimal dearance and no interference,ensuring consistent fow under varying pressure.

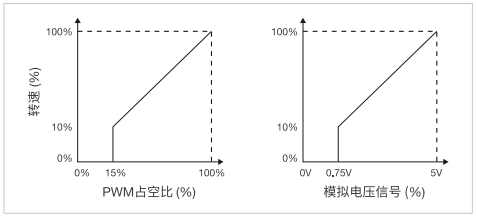

3. Duty cycle stepless adjustment, Precise milk temp control

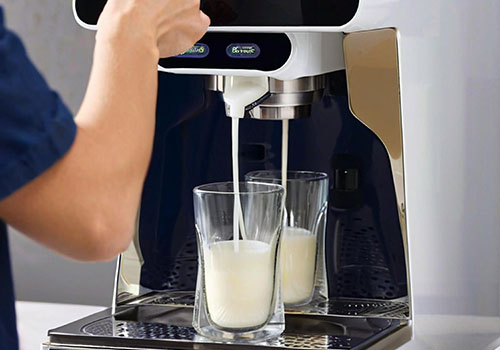

DC gear pump supports 15-100% stepless duty cycle adjustment for accurate temperature control, delivering consistent mlk-based beverages,ldeal for commercal cofiee machines. it meets the demands of quality and efficiency in the high-end market.

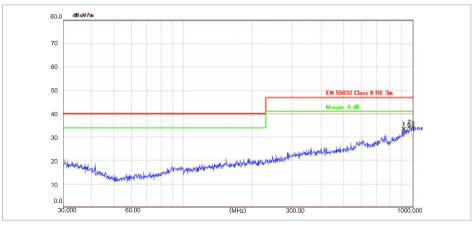

4. Low-Interference Drive, EMC-Compliant Motor Design

The motor is engineered to meet international electromagnetic compatibility (EMC) standards, ensuring stable operation without interfering with other electronic devices, while prowiding sufficient margin for certification compliance.

OEM Customization Available

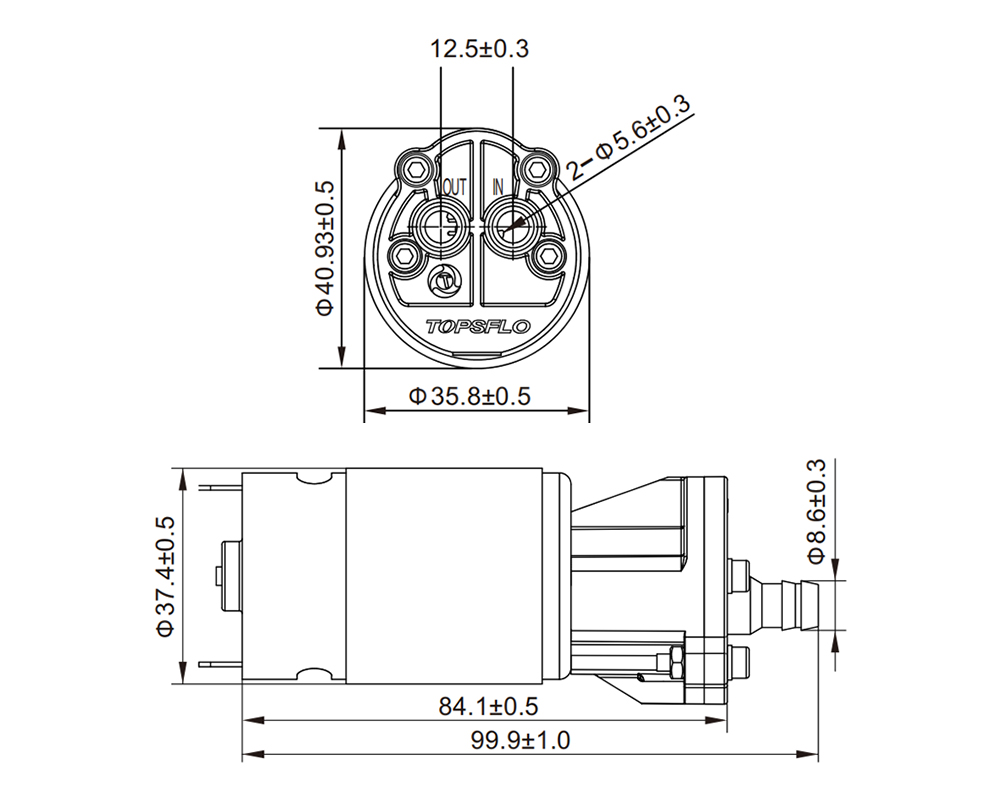

TOPSFLO TG01 Series Technical data

Model	TG01-A24-B01-0204	TG01-A24-B03-0102	TG01-A24-C01-0204
Prodcut
Max Pressure	4 bar	2 bar	4 bar

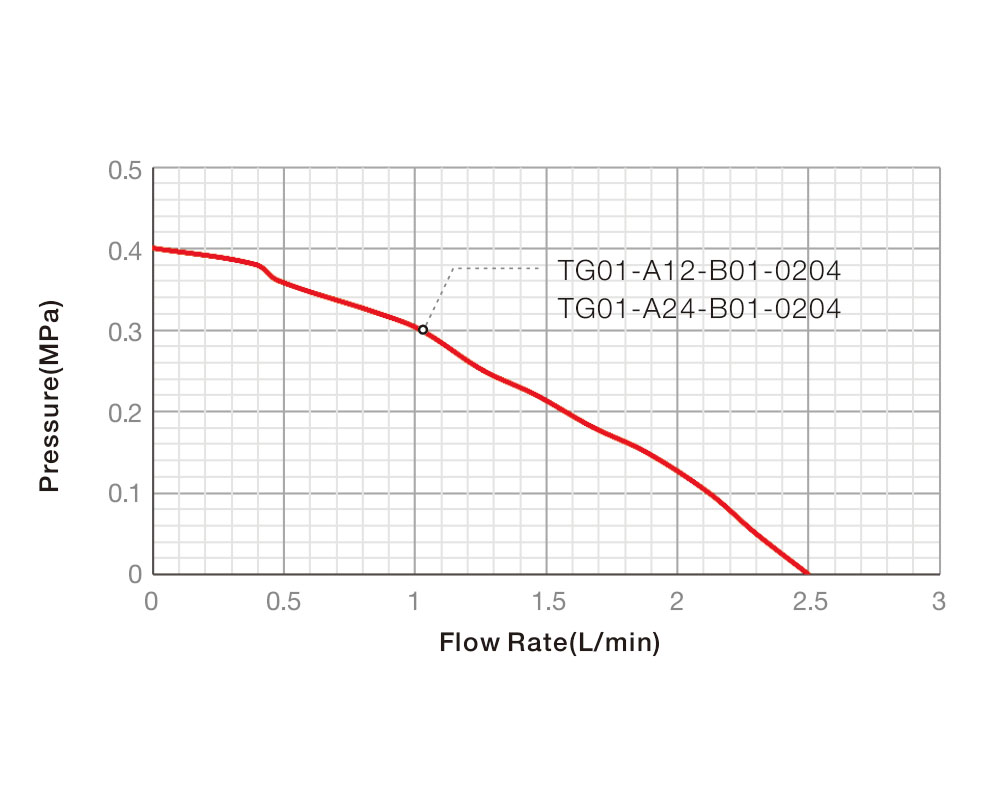

Max Flow Rate	2.5L/Min	1.3L/Min	2.5L/Min
Continue work Pressure /System Pressure (max)	0.25MPa/0.4MPa	0.25MPa/0.4MPa	0.25MPa/0.4MPa
Voltage	24VDC	24VDC	24VDC
Operating voltage range	24V:18~28VDC	24V:18~28VDC	24V:18~28VDC
Max Speed	4400RPM	2500RPM	4200RPM
Work mode	Intermittant	Intermittant	Intermittant
Motor Type	Brushed DC Motor	Brushed DC Motor	Brushless DC Motor
Seal Type	Lip seal	Lip seal	Lip seal
Life	1000H	1000H	3000H
Fluid Type	water, milk, beverages	water, milk, beverages	water, milk, beverages
Noise Level	<62 (dBA/1M)	<60 (dBA/1M)	<65 (dBA/1M)
Speed feedback	/	/	FG signal feedback
Control method	/	/	PWM Speed Control, Analog Voltage Speed Control
Material	Gear: Plastic;   Oil Seal: FKM/HNBR;   Center shaft / Gaskets: SUS304;  Sealing ring: EPDM / Silicone
Certification	NSF/ANSI 169 (View NSF Official Listing→),  FDA, LFGB, REACH, CE, RoHS
Fluid Temperature Range	0 to 80 °C
Storage environment requirements	Temperature：-30℃~70℃，Humidity：60%RH
Work environment requirements	Temperature：-25℃~70℃，Humidity：60%RH
Recommended Use	A filtration device is recommended upstream of the pump to prevent solid particles larger than 10 μm from entering the pump. This helps protect the gears from damage and extends the service life of the pump.

Explore more high-end milk pumps 14 bar: TG06-A Series →

Function:

Electronic functions, Gear materials, Terminal harnesses

Strength:

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
