TF51A-C Micro Diaphragm Liquid Pump

Mainly used in

Inkjet Printing | Medical Equipment
Analytical Instruments | Lab Equipment
Emission Monitoring
Cleaning & Disinfection Equipment

Contact Customized Product Catalog

Description Specifications Performance Curve Application Customization Related Products

Description

Features:

• Small and powerful

• Self-priming and excellent for pressure

• Dry running, durable and maintenance free

• Lasts Reliably Longer

• Uncontaminated flow

• Little vibration

• High level of gas tightness

• Extreme chemical resistance

• Optimal solution for your application

Specifications

Liquid Pump (Item Number)	Rated Voltage(VDC)	No-load Current(A)	Max Head(bar)	Max Vacuum(Kpa)	Max Flow (L/min)
TF51A-C12-W0306	12	1	≥1bar	40	3
TF51A-C24-W0306	24	0.65	≥1bar	40	6

Technical data

Motor	BLDC motor
Structure	Diaphragm Pump
Media	Ink, water, most liquids and gases
Material	Head Nylon, Membrane EPDM, Valve EPDM
Lifetime	15000 hours
Working Mode	Interrupt
Work Temperature Rise	<70℃
Customized Support	5V,PWM, FG, Material: membrane / valve / pump head

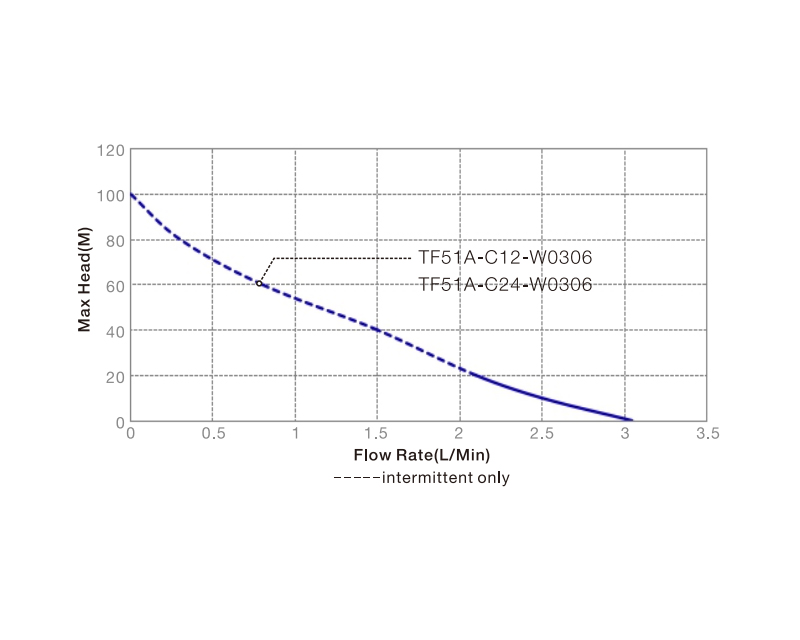

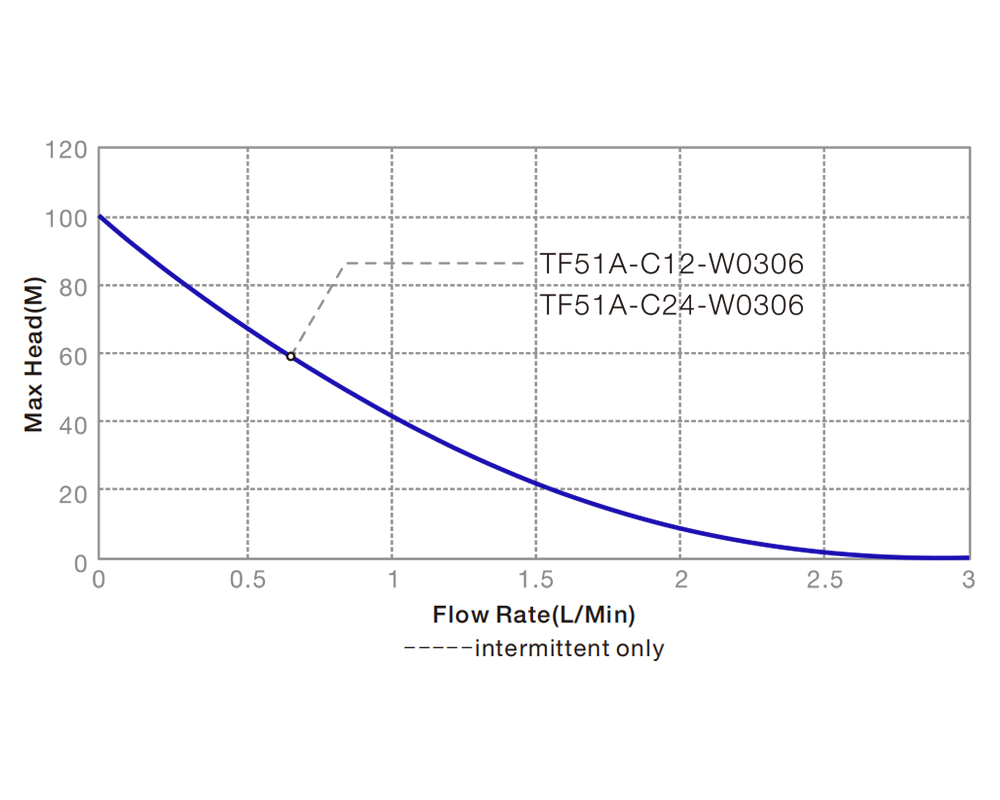

Performance Curve

Dimension(mm)

Application

TF51 Micro Diaphragm Liquid Pump Applications: Inkjet Printing, Fireplace, Medical Equipment, Medical Lqiuid Waste Handling, Analytical Instruments, Lab Equipment, Emission Monitoring, Fuel Cells, Cleaning & Disinfection

Inkjet Printer
Analytical Instruments
Medical Liquid Waste Handling
Fireplace

Customization

Strength:

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
