TF51A-A Micro Diaphragm Liquid Pump

Mainly used in

Inkjet Printing | Medical Equipment
Analytical Instruments | Lab Equipment
Emission Monitoring
Cleaning & Disinfection Equipment

Contact Customized Product Catalog

Description Specifications Performance Curve Application Customization Related Products

Description

Features:

• Small and powerful

• Self-priming and excellent for pressure

• Dry running, durable and maintenance free

• Lasts Reliably Longer

• Uncontaminated flow

• Little vibration

• High level of gas tightness

• Extreme chemical resistance

• Optimal solution for your application

Specifications

Liquid Pump (Item Number)	Rated Voltage(VDC)	No-load Current(A)	Max Head(bar)	Max Vacuum(Kpa)	Max Flow (L/min)
TF51A-A12-W103	12	1	≥1bar	40	3
TF51A-A24-W103	24	0.65	≥1bar	40	3

Technical data

Motor	DC motor
Structure	Diaphragm Pump
Media	Ink, water, most liquids and gases
Material	Head Nylon, Membrane EPDM, Valve EPDM
Lifetime	3000 hours
Working Mode	Interrupt
Work Temperature Rise	<70℃
Customized Support	5V,PWM, FG, Material: membrane / valve / pump head

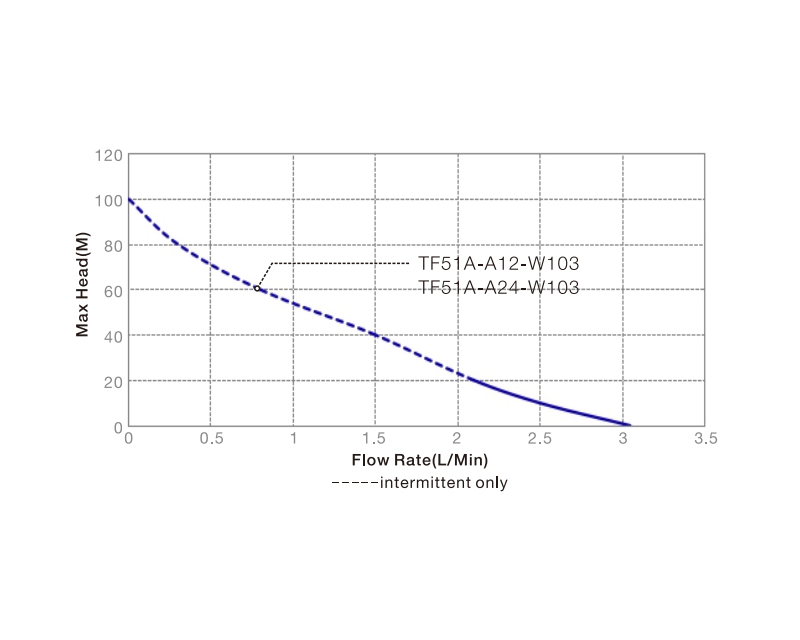

Performance Curve

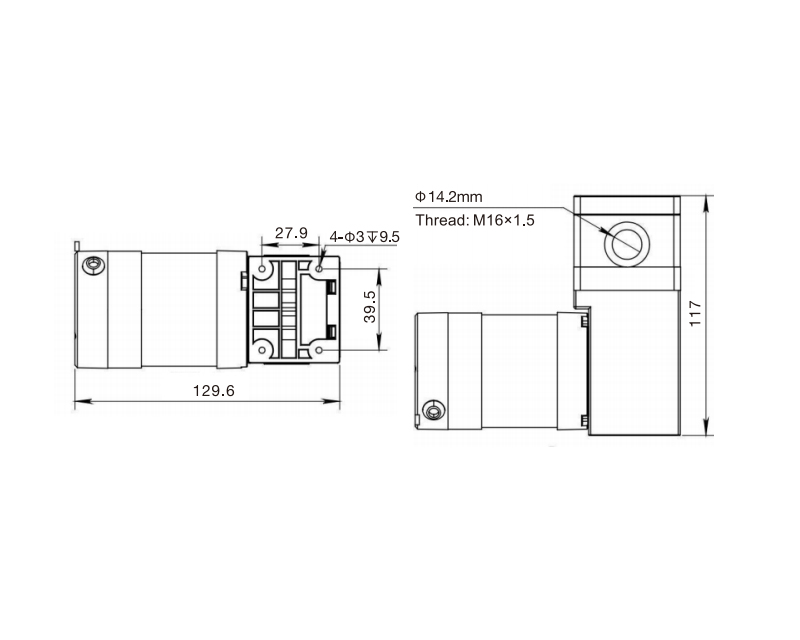

Dimension(mm)

Application

TF51 Micro Diaphragm Liquid Pump Applications: Inkjet Printing, Fireplace, Medical Equipment, Medical Lqiuid Waste Handling, Analytical Instruments, Lab Equipment, Emission Monitoring, Fuel Cells, Cleaning & Disinfection

Inkjet Printer
Analytical Instruments
Medical Liquid Waste Handling
Fireplace
