TF22 Micro Diaphragm Liquid Pump

Mainly used in

Inkjet Printing | Medical Equipment
Analytical Instruments | Lab Equipment
Emission Monitoring | Fuel Cells | Cleaning & Disinfection
Food | Auto Chemistry Analyzer | Fireplace

TF22 Micro Diaphragm Liquid Pump

Description

Features:

• Self priming, compact size and excellent for pressure

• Resistant materials to transfer aggressive media

• Dry running, durable and maintenance free

• Great adjustability of flow rate

• Clean and gentle transfer of sensitive media

Specifications

Liquid Pump
(Item Number)
Rated
Voltage(VDC)
No-load
Current(A)
Max
Head(bar)
Max
Vacuum(Kpa)
Max Flow
(L/min)
TF22-A24-C06-W6003 24 0.28 ≥6bar 30 0.2



Technical data

Motor BLDC motor
Structure Diaphragm Pump
Media Ink, water, most liquids and gases
Material Head Nylon, Membrane EPDM, Valve EPDM
Operating Voltage Range 24V: 18~28VDC
Lifetime 10000 hours
Working Mode Interrupt
Work Temperature Rise <70℃
Customized Support 5V,PWM, FG, Material: membrane / valve / pump head

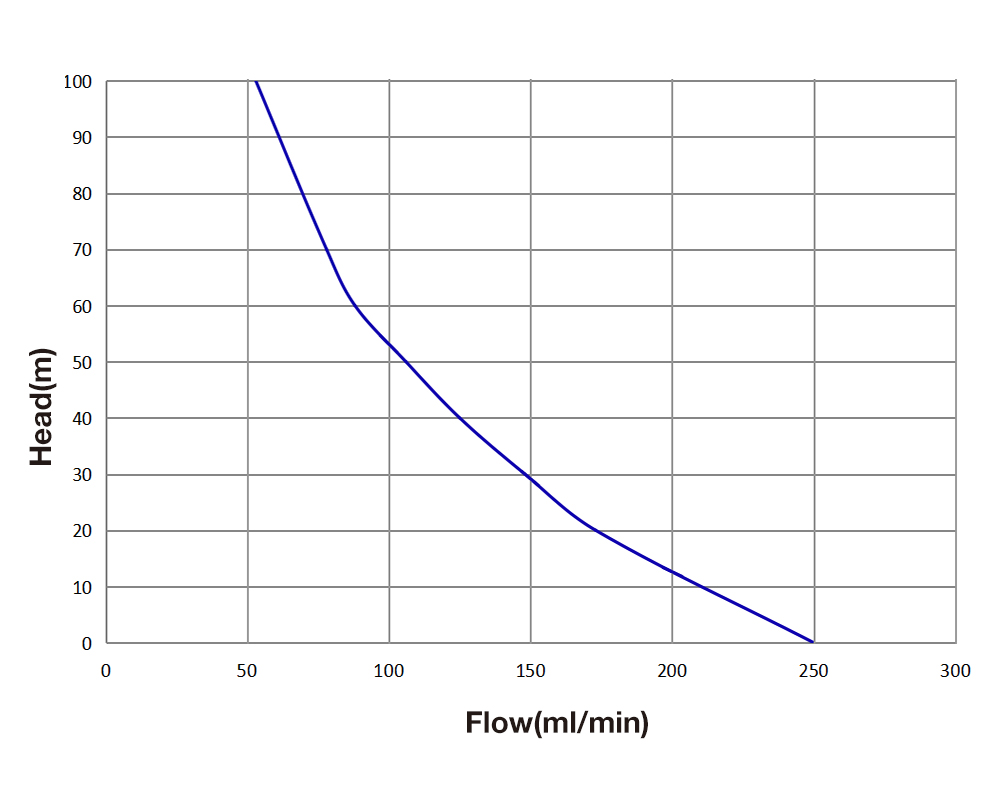

Performance Curve

Performance Curve

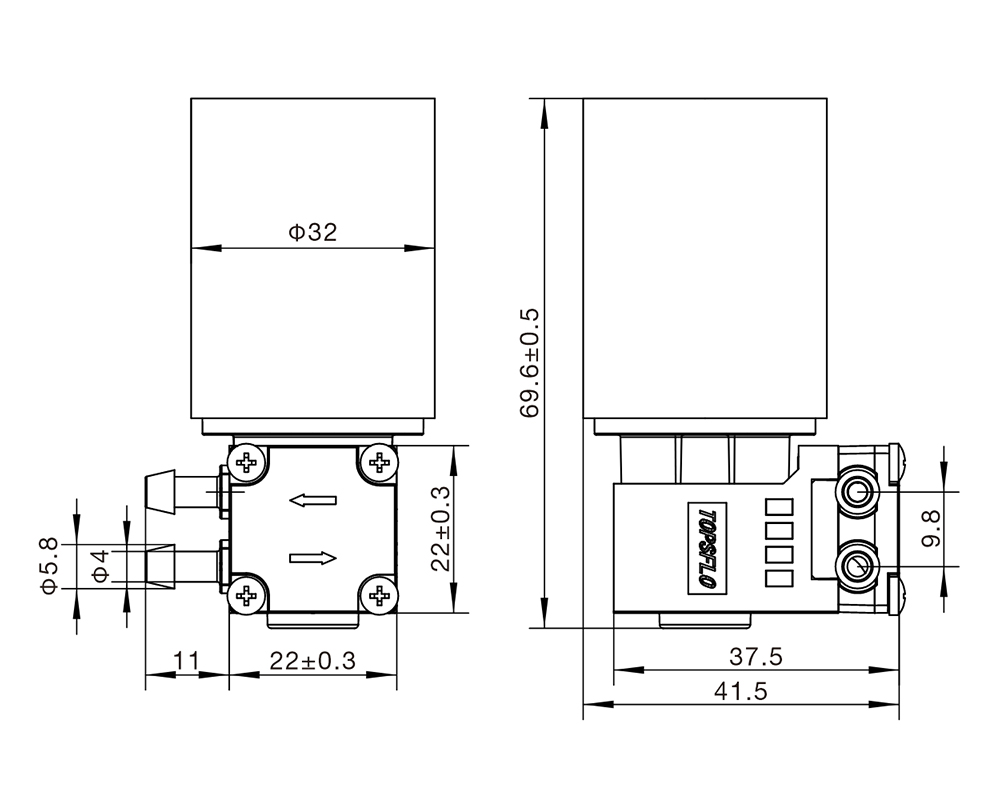

Dimension(mm)

Dimension(mm)

Application

TF30 Series Micro Diaphragm Liquid Pump Applications: Inkjet Printing, Fireplace, Medical Equipment, Medical Lqiuid Waste Handling, Analytical Instruments, Lab Equipment, Emission Monitoring, Fuel Cells, Cleaning & Disinfection

  • Ink Printer

    Ink Printer

  • Analytical Instruments

    Analytical Instruments

  • Medical Liquid Waste Handling

    Medical Liquid Waste Handling

  • Fireplace

    Fireplace

Customization

Strength:

♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
