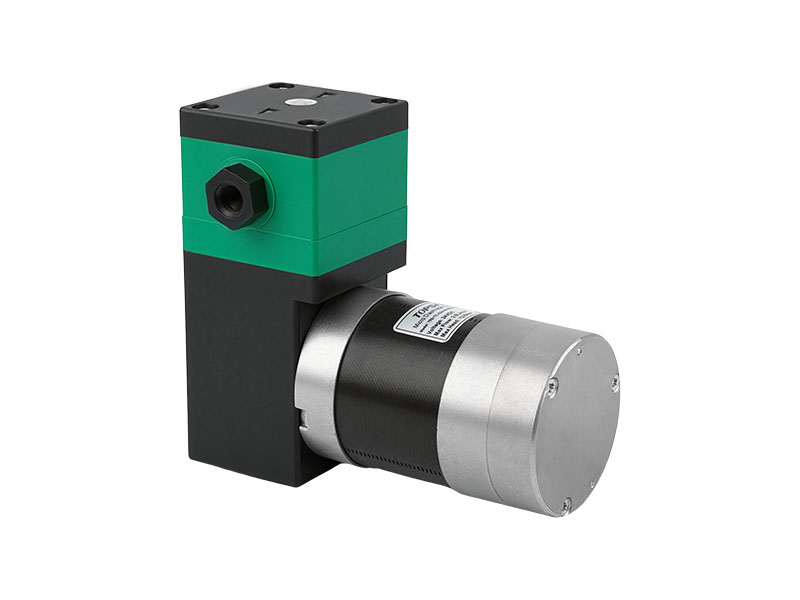

TF51TC Diaphragm Pump for Inkjet Printer
Mainly used in
Inkjet Printing | Medical Equipment
Analytical Instruments | Lab Equipment
Emission Monitoring
Cleaning & Disinfection Equipment
Description
Features:
• Small and powerful
• Self-priming and excellent for pressure
• Dry running, durable and maintenance free
• Lasts Reliably Longer
• Uncontaminated flow
• Little vibration
• High level of gas tightness
• Extreme chemical resistance
• Optimal solution for your application
Specifications
Technical data
| Motor | BLDC motor |
| Max Flow | 2-2.5L/min |
| Max Pressure | 12.5bar |
| Structure | Diaphragm Pump |
| Media | Ink, water, most liquids and gases |
| Material | Head Nylon, Membrane EPDM, Valve EPDM |
| Operating Voltage Range | 24V: 18~28VDC |
| Lifetime | 10000 hours |
| Working Mode | Interrupt |
| Work Temperature Rise | <70℃ |
| Customized Support | 5V,PWM, FG, Material: membrane / valve / pump head |
Performance Curve

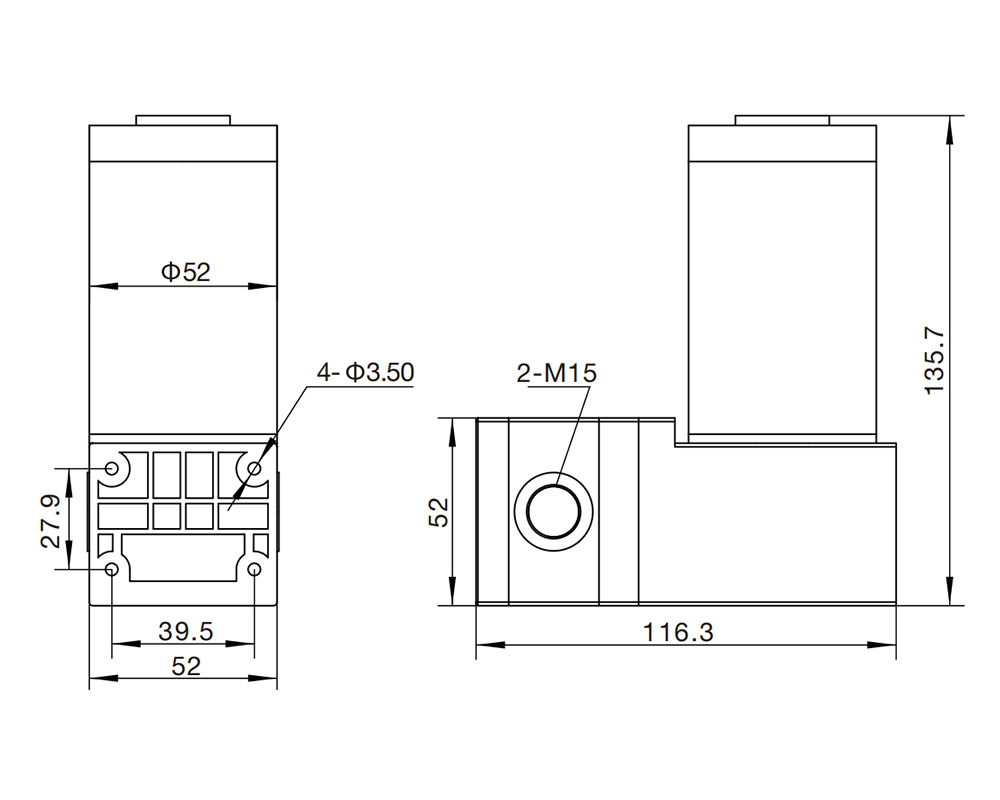

Dimension(mm)
Application
TF51 Micro Diaphragm Liquid Pump Applications: Inkjet Printing, Fireplace, Medical Equipment, Medical Lqiuid Waste Handling, Analytical Instruments, Lab Equipment, Emission Monitoring, Fuel Cells, Cleaning & Disinfection
-
Inkjet Printer
-
Analytical Instruments
-
Medical Liquid Waste Handling
-
Fireplace
Customization
Strength:
♦ 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop,100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology
